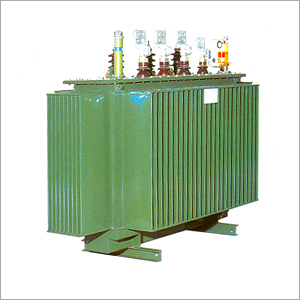

Hermetically Sealed Transformer

Hermetically Sealed Transformer
Hermetically Sealed Transformer
Product Code : 01
Price And Quantity
  • Minimum Order Quantity
  • 1 Unit
Product Specifications
  • Rated Voltage
  • 220-440 Volt (V)
  • Coil Material
  • Copper Core
  • Dimension(L*W*H)
  • 16x16x28 Inch (in)
  • Product Type
  • Electrical Transformer
  • Material
  • Metal
  • Frequency (MHz)
  • 50-60 Megahertz (MHZ)
  • Phase
  • Three Phase
  • Power Scope
  • Electric
Product Description

Transformer Hermetically Sealed Type

Leveraging on our wide expertise and skills, we are renowned as one of the most profound manufacturers & suppliers of Transformer Hermetically Sealed Type. Streets, commercial sector and countryside lighting are some of the areas where these transformers are used. We manufacture these sealed type transformers using optimum quality of raw materials procured from reliable vendors in the market. Transformer Hermetically Sealed Type is appreciated for its features such as high operational fluency, unmatched performance and corrosion resistant surface.

Further Details:
10KV Class S9 Series Distribution Transformer

Summarization
S9 Series Three Phase Oil Immersed Distribution Transformer has hermetically sealed type and conservator type. This Series (range from 6,3KVA to 2500KVA) are suitable for 10KV class, 50Hz and 60Hz distribution system.

Technical Data For 10KV Class S9 Series Distribution Transformers

Type

Rated
KVA

 Voltage Combination
 Vector Group
 Loss (KW)
 No-Load Current
(%)
 Imp. Vol
(%)

Dimension
(mm)
(LxWxH)

 Weight (KG)
HV
(KV)
 Tapping
Range %
 LV
(KV)
 No-Load Loss
 Full-Load Loss
 Oil
Weight
 Total
Weight
S9-6.3
 6.3







6

6.3

6.6

10

10.5

11

13.2








±2x2.5%

or

±3x2.5%

or

±5%








0.4

or

0.415

or

others










Y,yn0

or

D,yn11








 0.036
 0.210
 4.0
 4.0
 910x450x985
 52
 168
S9-10 10
 0.045
 0.270
 3.3
 4.0 960x450x1010
 62
 210
S9-15 15
 0.060
 0.360
 2.2
 4.0 1030x450x1050
 78
 220
S9-20 20
 0.084
 0.521
 2.2
 4.0 1105x760x1185
 80
 240
S9-25 25
 0.085
 0.557
 2.1
 4.0 1110x650x750
 85
 250
S9-30 30
 0.13
 0.60
 2.1
 4.0 1130x700x1120
 90
 290
S9-50 50
 0.17
 0.87
 2.0
 4.0 950x520x1040
 110
 500
S9-100 100
 0.29
 1.50
 1.6
 4.0 1110x630x1090
 165
 670
S9-200 200
 0.48
 2.60
 1.3
 4.0 1240x700x1190
 178
 890
S9-250 250
 0.56
 3.05
 1.2
 4.0 1300x720x1250
 191
 1000
S9-315 315
 0.67
 3.65
 1.1
 4.0 1340x750x1270
 216
 1165
S9-400 400
 0.80
 4.30
 1.0
 4.0 1360x800x1350
 270
 1400
S9-500 500
 0.96
 5.10
 1.0
 4.0 1420x800x1410
 300
 1600
S9-630 630
 1.20
 6.20
 0.9
 4.5
 1560x840x1460
 345
 1925
S9-800 800
 1.40
 7.50
 0.8
 4.5 1670x940x1540
 415
 2300
S9-1000 1000
 1.70
 10.3
 0.7
 4.5 1840x1050x1630
 500
 2750
S9-1250 1250
 1.95
 12.0
 0.6
 4.5 1850x1050x1720
 580
 3350
S9-1600 1600
 2.40
 14.5
 0.6
 4.5 1970x1180x1820
 740
 4150
S9-2000 2000
 3
 16.5
 0.5
 4.5 2100x1280x1920
 1390
 6200
S9-2500 2500
 3.75
 19
 0.5
 4.5 2210x1390x2150
 2560
 8200


Product Details

Output Voltage

230 V

Input Voltage

180 - 280 V

Response Time

Less Than 1 minute

Frequency

48-52 Hz

Operating Temperature

50 degree

Power

1KVA to 50KVA
The above parameter is only for reference as typical data, customer-made is subject to customers' request



Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 100-200 Unit Per Month
  • Delivery Time
  • 1-7 Days
  • Main Export Market(s)
  • Western Europe, Australia, North America, South America, Eastern Europe, Middle East, Central America, Asia, Africa
  • Main Domestic Market
  • All India
